Competitive Metal Melting Furnace Ferrous And Non-Ferrous Metal Melting
Mainly be used in the material of ferrous and non-ferrous metal casting, melting and heating treatment industry, such as iron, steel, brass, cooper, zinc, tin and so on. As well as heating treatment prior to forging, sintering and tube-bending forming in casting and melting industries.
Performance Characteristics:
1. Zero-voltage scanning soft, available for start or stop at any time under any state without impact on power supply;
2. Speedy melting, low production cost, low pollution, conforming to environmental protection requirement;
3. Melting directly from low temperature, available for fully emptying of solution, easy change of category of melting material;
4. Flexibly adjustable power, easy and continuous smooth adjustment, easily controllable temperature, low oxidization loss, uniform metal content;
5. Furnace shell with cast aluminum ally or steel shell construction, small footprint, easy overturn body, available for selection of electric, manual, hydraulic or other overturn mode as needed;
6. Contravariant automatic regulation circuit available for matching of load impendence automatically, maintaining good operation without regulation or compensation of capacitance; Power supply with fault diagnosis facilitating service.
Power protection measures include:
- Main circuit short circuit protection and phase protection
- Main circuit over-current protection
- High voltage protection of the power grid
- Low grid voltage protection
- Cooling water temperature protection and pressure protection,Low cooling water flow protection
- SCR overvoltage over-current protection
- Inverter thyristor current rise rate high protection
- Inverter commutation time insufficient protection
- Inverter thyristor reverse turn-off voltage insufficient protection
Technical parameter of the Induction Steel Shell Melting Furnace Aluminum Casting Furnace
| Model | KGPS-300 | KGPS-500 | KGPS-1200 | KGPS-1400 | KGPS-2000 | KGPS-4500 |
| Rated power | 300KW | 500KW | 1200KW | 1400KW | 2000KW | 4500KW |
| Rated capacity | 350kg | 750kg | 1500kg | 2000kg | 3000kg | 6000kg |
| Matching transformer’s capacity | 315KVA | 630KVA | 1250KVA | 1800KVA | 2500KVA | 5500KVA |
| Input voltage | 380V 50-60HZ | 750V 50HZ | 750V 50HZ | 6x750V 50HZ | 6x750V 50HZ |
| MF frequency | 1000HZ | 1000HZ | 800HZ | 500HZ | 500HZ | 300HZ |
| MF voltage | 750V | 750V | 1400V | 1480V | 1460V | 4800V |
| DC voltage | 500V | 500V | 990V | 990V | 990V | 1350V |
| DC current | 600A | 1000A | 1000A | 1410A | 1010A | 3300A |
| Maximum temperature | 1800℃ |
Product Tags:
|
|

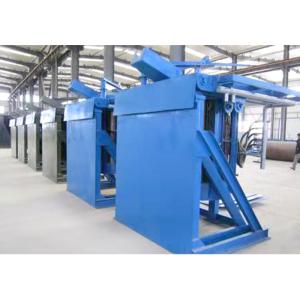

1 Ton 400kw Ferrous / Non Ferrous Metal Melting Furnace Images
|
